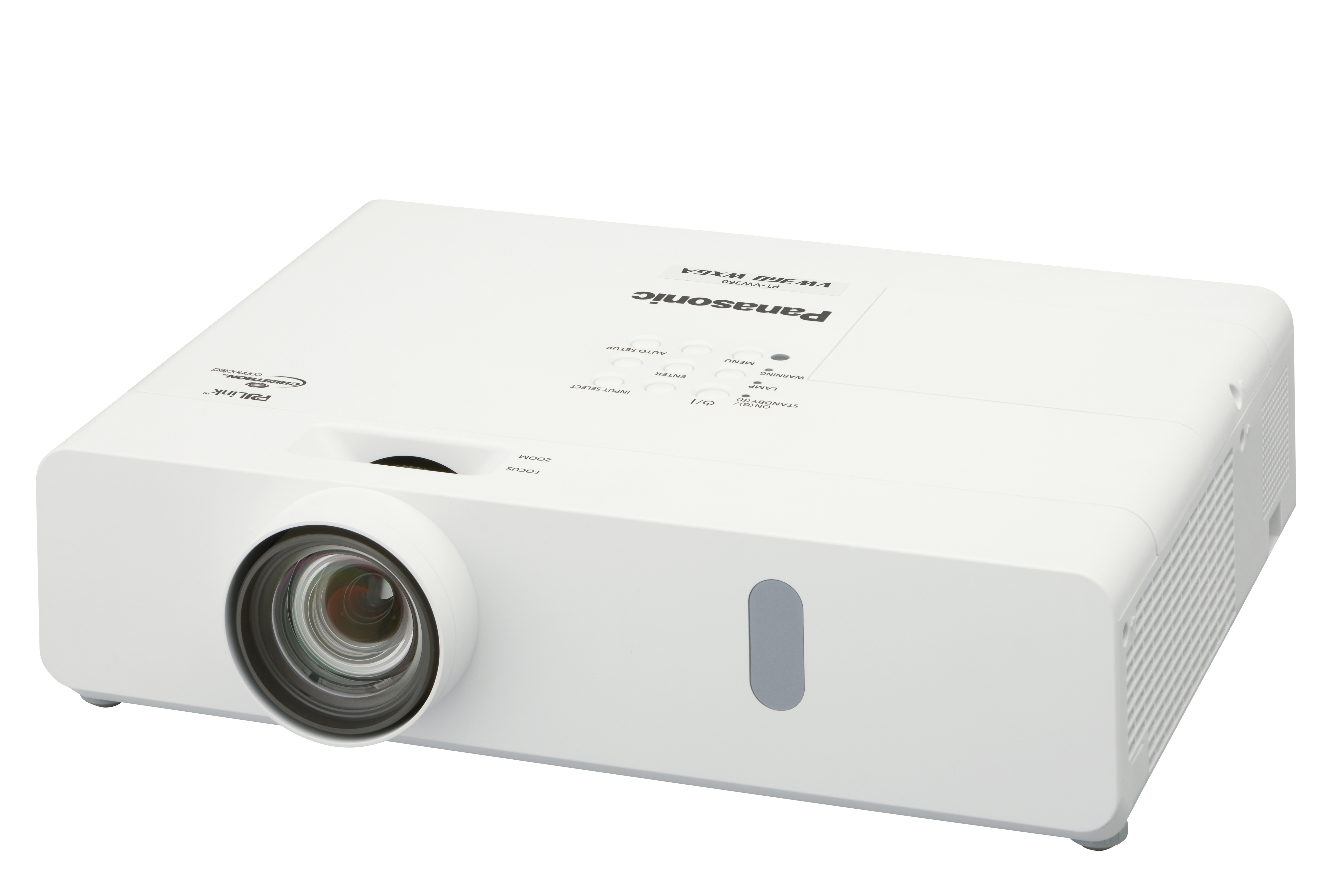

Panasonic PT-VW360
| Brand | Panasonic · PT-VW360 Series |
| Type | Portable |
| Status | Discontinued |
| Released | June 2018 |
| Resolution | WXGA |
| Imaging technology | 3LCD |
| Light source | Lamp |
| Brightness | 4,000 lm ISO |
| Throw ratio | 1.18–1.9:1 |
A 3LCD lamp portable projector for classrooms and offices. It has a 1280 x 800 panel, a rated 4,000 lumens, a 1.6x manual zoom lens with no lens shift, two HDMI inputs, LAN with PJLink and a 3.3 kg body.
Data sheet
| White light output | 4,000 lm ISO (Normal power, Dynamic mode) · 4,000 lm ANSI (Normal power, Dynamic mode) input signal PC, lamp power NORMAL, picture mode Dynamic, Iris Off, Daylight View Off, Auto Power Save Off; average of all products when shipped | input signal PC, lamp power NORMAL, picture mode Dynamic, Iris Off, Daylight View Off, Auto Power Save Off; average of all products when shipped |
| Brightness uniformity | 85% | |
| Imaging technology | 3LCD | |
| Chip / panel diagonal | 0.59 in | |
| Native resolution | WXGA (1280 × 800) | |
| Native aspect | 16:10Derived | |
| Dynamic contrast | 20,000:1 Full On/Off, input signal PC, lamp power NORMAL, picture mode Dynamic, Iris On, Daylight View Off, Auto Power Save Off | Full On/Off, input signal PC, lamp power NORMAL, picture mode Dynamic, Iris On, Daylight View Off, Auto Power Save Off |
| Dynamic contrast method | Dynamic iris |
Light source
| Light source | Lamp | |
| Lamp power | 240 W | |
| Replacement lamp | ET-LAV300 | |
| Light-source life | 5,000 h normal · 7,000 h eco |
Optics
| Throw ratio | 1.18–1.9:1100″ · 2.54–4.09 m | |
| Image size | 30–300 in | |
| Zoom | Optical | |
| Zoom ratio | 1.61×Derived | |
| Focal length | 15.31–24.64 mm | |
| Aperture (f-number) | 1.6–1.9 | |
| Focus | Manual | |
| Vertical lens shift | None | |
| Horizontal lens shift | None | |
| Vertical keystone | 35° | |
| Horizontal keystone | 35° | |
| Auto keystone | Yes | |
| Corner correction | 4-corner |
Inputs & control
| HDMI inputs | 2 × HDMI | |
| Other video inputs | VGA, Component, Composite | |
| Max input resolution | WUXGA | |
| Audio inputs | 3.5 mm, RCA | |
| USB media playback | Yes | |
| Control ports | RS-232 | |
| PJLink | Class 1 | |
| Control-system drivers | Crestron, AMX |
Smart platform
| Ethernet | Yes |
Audio
| Speaker power | 10 W | |
| Speakers | 1 | |
| Layout | Mono | |
| Audio outputs | 3.5 mm | |
| HDMI audio return | NoneDerived |
Physical & installation
| Dimensions (W × D × H) | 352 × 279 × 98 mm | |
| Weight | 3,300 g | |
| Colours | White | |
| Orientations | Table, Ceiling, Rear | |
| Ceiling mount | 3 × M4, 8 mm deep, 1.25 N·m | |
| Dust filter | Replaceable |
Environment & power
| Operating temperature | 0–40°C | |
| Operating humidity | 20–80%RH | |
| Altitude | 2,700 m · high-altitude mode | |
| Power draw | Max 320 W | |
| Standby | 0.5 W Standby mode ECO | Standby mode ECO |
| Networked standby | 1 W Standby mode NETWORK | Standby mode NETWORK |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Normal 37 dB(A) · Eco 29 dB(A) |
Safety & support
| Marks | FCC | |
| Warranty | 🇺🇸 US 3 yr or 2,000 h Retailer's listing, whichever comes first; it also lists a limited 90-day warranty on the lamp. Panasonic's own warranty document was not located. | |
| User manual | na.panasonic.com | |
| Spare parts | Lamp ET-LAV300 · Air filter ET-RFV300 · Mount ET-PKL100H |
In the box
| In the box | Power cord, Remote, Remote batteries, VGA cable, Lens cap |
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|
Hisense C3 Ultra 4K UHD · DLP | 4K UHD | DLP | 4,000 | $2,497.97 +$1,149 | Compare |
Panasonic PT-LMW420 WXGA · 3LCD | WXGA | 3LCD | 4,200 +200 | — | Compare |

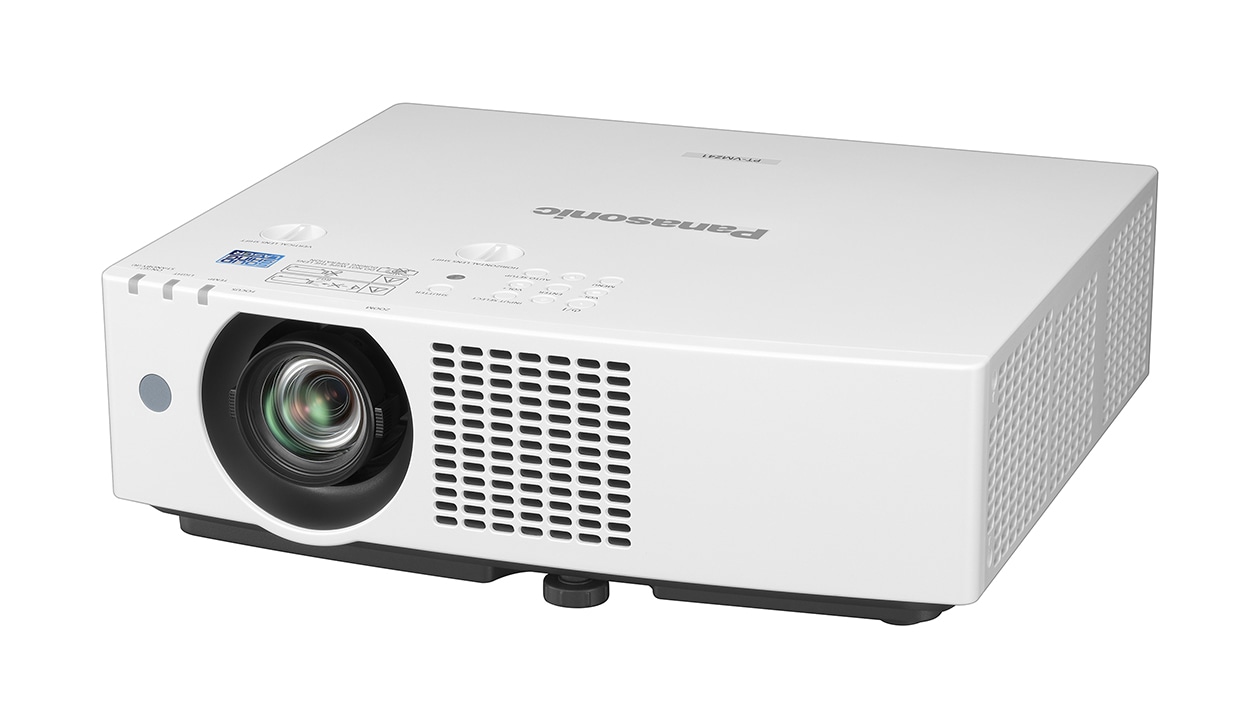

Panasonic PT-VMZ41 WUXGA · 3LCD | WUXGA | 3LCD | 4,500 +500 | — | Compare |
