Panasonic PT-REZ12
| Brand | Panasonic · PT-REZ15 Series |
| Type | Installation |
| Released | September 2023 |
| Resolution | WUXGA |
| HDR formats | HLG |
| Imaging technology | DLP |
| Light source | Laser (phosphor) |
| Brightness | 12,000 lm ISO |
| Throw ratio | 1.36–2.1:1 |

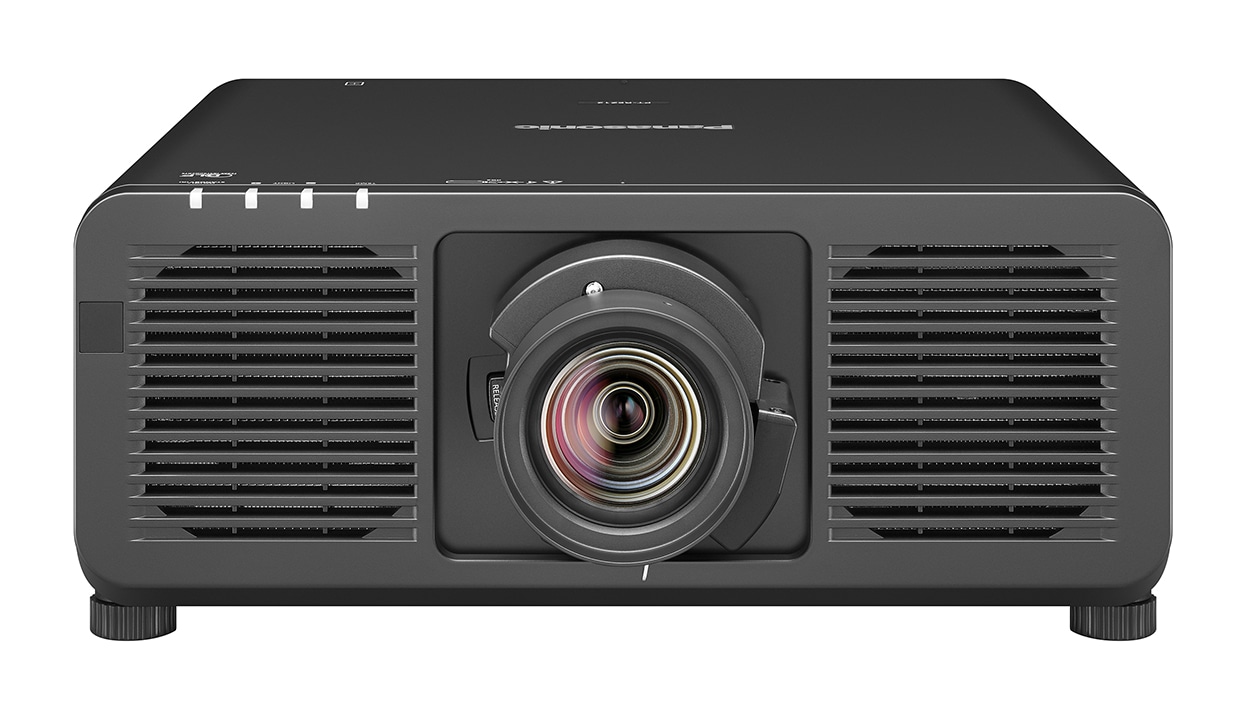

A fixed-installation single-chip DLP laser projector with a 0.8-inch native WUXGA (1920x1200) chip, rated at 12,000 lumens. It has a powered zoom and focus lens with powered lens shift, optional interchangeable C1-series lenses, two HDMI inputs, DisplayPort and an Intel SDM slot, and is built for 360-degree installation. Sold in black and white.
Data sheet
| White light output | 12,000 lm ISO (Normal power) · 12,000 lm ANSI OPERATING MODE NORMAL; Zoom Lens ET-C1S600; average of all products when shipped | OPERATING MODE NORMAL; Zoom Lens ET-C1S600; average of all products when shipped |
| Brightness uniformity | 90% | |
| Brightness by mode | Normal 12,000 lm · Eco 9,600 lm | |
| Eco brightness | 80%Derived | |
| Imaging technology | DLP | |
| Chip / panel diagonal | 0.8 in | |
| Native resolution | WUXGA (1920 × 1200) | |
| Native aspect | 16:10Derived | |
| Dynamic contrast | 25,000:1 DYNAMIC CONTRAST set to [3]; ISO/IEC 21118:2020 per maker footnote | DYNAMIC CONTRAST set to [3]; ISO/IEC 21118:2020 per maker footnote |
| Gamma / EOTF presets | 2.2, Custom | |
| Colour temperature presets | Custom | |
| HDR formats | HLG |
Light source
| Light source | Laser (phosphor) | |
| Light-source life | 20,000 h normal · 24,000 h eco Light output declines to about 50 %; IEC 62087:2008 broadcast contents, Dynamic Contrast [3], 35 °C, 700 m, 0.15 mg/m3 particulate | Light output declines to about 50 %; IEC 62087:2008 broadcast contents, Dynamic Contrast [3], 35 °C, 700 m, 0.15 mg/m3 particulate |
| Life defined as | 50% brightness |
Optics
| Throw ratio | 1.36–2.1:1100″ · 2.93–4.52 m | |
| Image size | 70–1,000 in | |
| Zoom | Optical | |
| Zoom ratio | 1.54×Derived | |
| Focal length | 23.9–37.2 mm | |
| Aperture (f-number) | 1.84–2.31 | |
| Focus | Motorised | |
| Vertical lens shift | ±60% | |
| Horizontal lens shift | ±29% | |
| Motorised lens shift | Yes | |
| Vertical keystone | 40° | |
| Horizontal keystone | 40° | |
| Grid warp | Yes | |
| Interchangeable lens | Yes |
Inputs & control
| HDMI inputs | 2 × HDMI (HDCP 2.3) | |
| Max input resolution | DCI 4K | |
| Control ports | RS-232 | |
| PJLink | Class 2 | |
| Control-system drivers | Crestron, AMX |
Smart platform
| Ethernet | Yes |
Physical & installation
| Dimensions (W × D × H) | 498 × 648 × 212 mm | |
| Weight | 28,700 g | |
| Colours | Black, White | |
| Orientations | Table, Ceiling, Rear, 360° | |
| Ceiling mount | 5 × M6, 12 mm deep, 4 N·m | |
| Dust filter | None | |
| Ingress protection | IP5X (light engine) |
Environment & power
| Operating temperature | 0–45°C | |
| Operating humidity | 10–80%RH | |
| Altitude | 4,200 m | |
| Power draw | Max 995 W · Normal 850 W · Eco 650 W Maximum is at AC 100-120 V; normal and eco on-mode at AC 100-120 V (spec page, REZ12 column) | Maximum is at AC 100-120 V; normal and eco on-mode at AC 100-120 V (spec page, REZ12 column) |
| Standby | 0.5 W STANDBY MODE ECO | STANDBY MODE ECO |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Normal 38 dB(A) · Eco 38 dB(A) |
Safety & support
| Laser class | Class 1 | |
| Risk group | RG2 | |
| FDA laser notice | Notice 57 | |
| Marks | FCC | |
| User manual | bizpartner.panasonic.net |
In the box
| In the box | Power cord, Remote, Remote batteries |
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|
Optoma ProScene ZU1300 WUXGA · DLP | WUXGA | DLP | 12,000 | $27,999 | Compare |

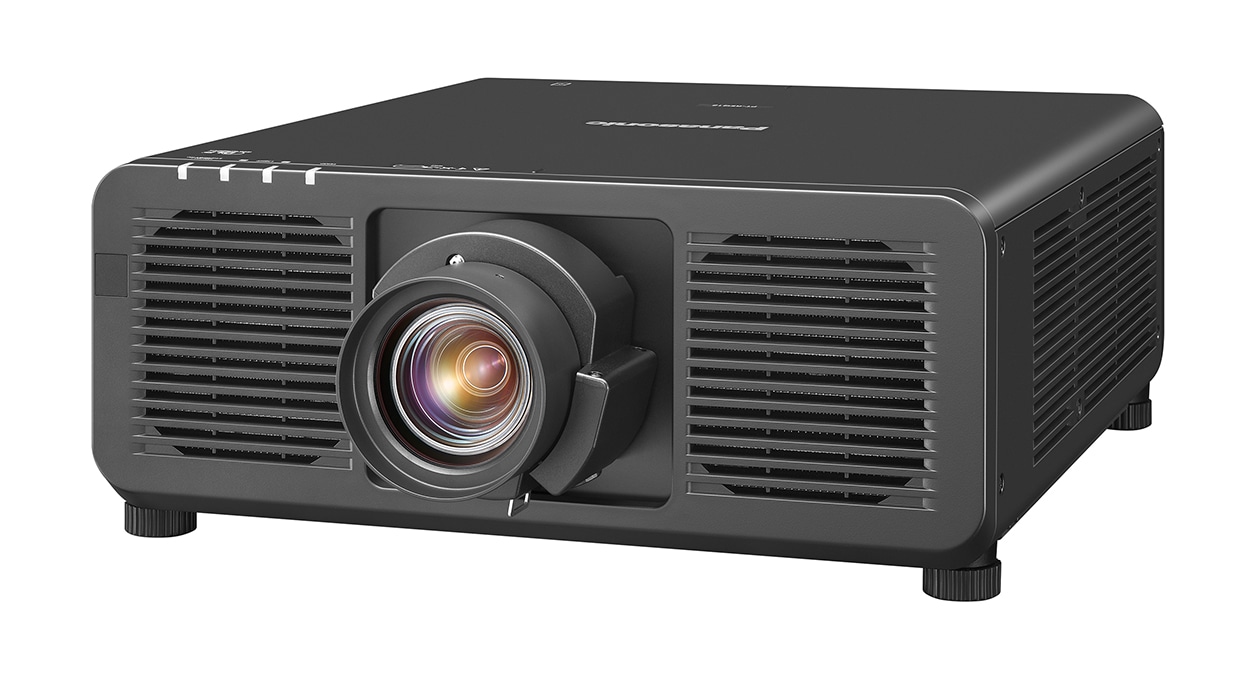

Panasonic PT-REQ12 3840 × 2400 · DLP | 3840 × 2400 | DLP | 12,000 | — | Compare |
