Epson EB-PU1007W vs Optoma ProScene ZK810T

Epson EB-PU1007W
Epson EB-PU1007W
MSRP $8,250

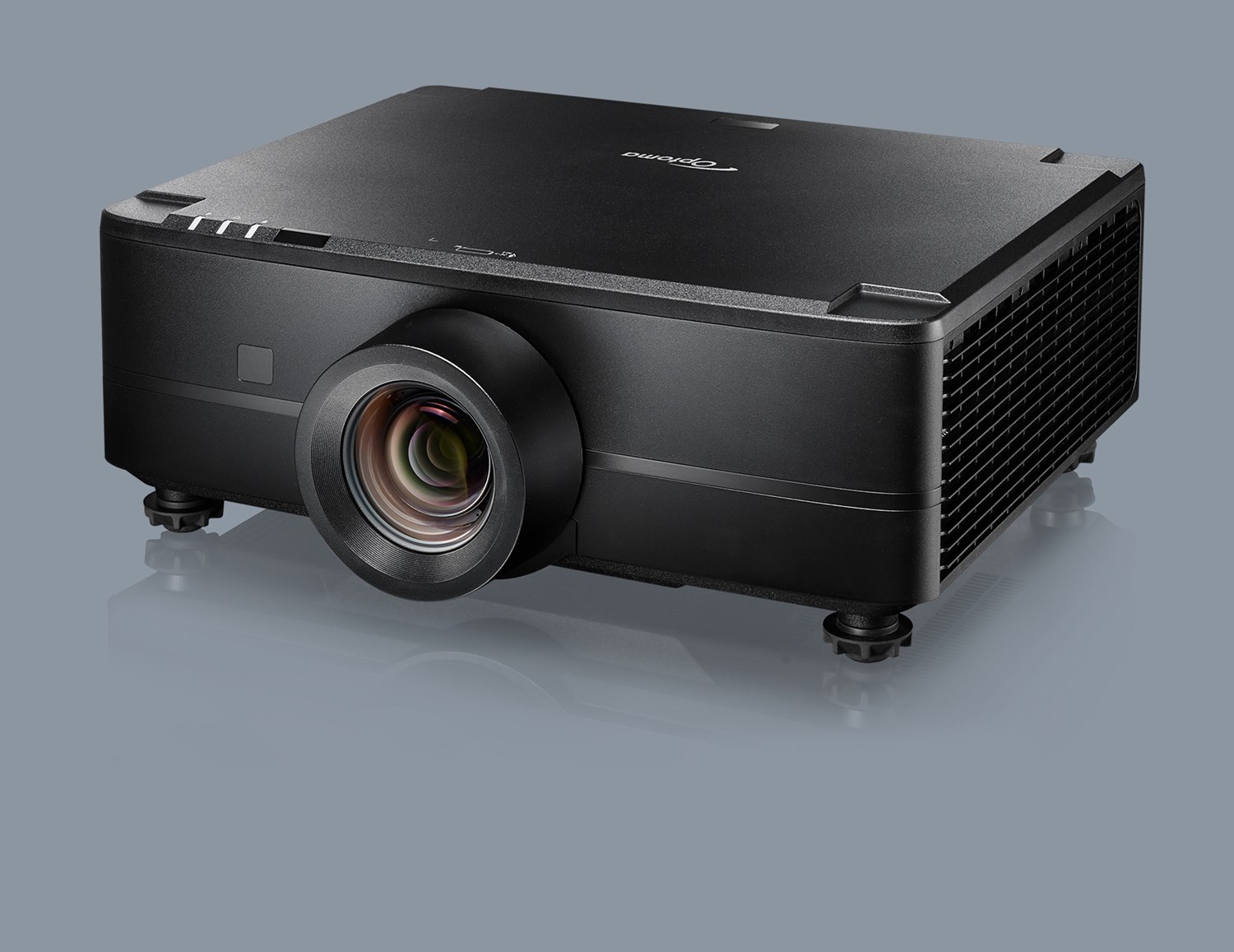

Optoma ProScene ZK810TOptoma ProScene ZK810T
MSRP $18,999
Key differences
White light output7,000 lm ISO (Normal power)7,200 lm ANSI
Native resolutionWUXGA (1920 × 1200)—
Throw ratio—1.26–2:1
Fan noiseNormal 33 dB(A) · Eco 29 dB(A)Max 38 dB(A) · Eco 34 dB(A)
PriceMSRP $8,250MSRP $18,999
Room fit
Distance to screen—2.8–4.4 m
Brightness
Rated brightness7,000 lmDerived7,200 lmDerived
White light output7,000 lm ISO (Normal power)7,200 lm ANSI
Colour light output7,000 lm (Normal power)—
Claimed brightness (non-standard)—8,500 lm
Brightness uniformity85%95%
Brightness by modeNormal 7,000 lm · Eco 4,900 lm—
Eco brightness70%Derived—
Display system
Imaging technology3LCDDLP
Chip / panel diagonal0.76 in0.65 in
On-screen resolutionWUXGA (1920 × 1200)Derived4K UHD (3840 × 2160)Derived
Native resolutionWUXGA (1920 × 1200)—
Native aspect16:10Derived16:9Derived
Pixel shiftYes (scheme not stated)—
Addressable resolution—4K UHD (3840 × 2160)
Contrast
Dynamic contrastOver 2,500,000:13,000,000:1
HDR
HDR formatsHDR10, HLGHDR10, HLG
Calibration
Colour management (CMS)6-axis—
3D
3D—Yes
Light source
Light sourceLaser (phosphor)Laser (phosphor)
EmitterBlue laser + phosphorBlue laser + phosphor
Light-source life20,000 h normal · 30,000 h eco20,000 h normal · 30,000 h eco
Life defined as50% brightness—
Light output controlContinuous—
Constant brightness modeYesYes
Optics
Throw ratio—1.26–2:1
Image size—50–300 in
Zoom—Optical
Zoom ratio—1.59×Derived
Focal length—18.72–29.59 mm
Aperture (f-number)—2–2.4
FocusMotorisedMotorised
Vertical lens shift±67%±55%
Horizontal lens shift±30%±25%
Motorised lens shiftYesYes
Lens memory slots10—
Vertical keystone45°40°
Horizontal keystone30°30°
Corner correction—4-corner
Grid warpYesYes
Interchangeable lensYesNo
Motion & gaming
Frame interpolation (MEMC)Yes—
Inputs & control
HDMI inputsHDMI (HDCP 2.3)2 × HDMI 2.0
HDMI inputs (count)1Derived2Derived
Newest HDMI version—HDMI 2.0Derived
Other video inputs+ VGA, HDBaseTHDBaseT
Max input resolutionDCI 4K4K UHD
USB media playbackYes—
Control portsRS-232RS-232, + Wired IR, + 12 V trigger
PJLinkClass 2Class 2
Control-system driversCrestron, AMXCrestron, AMX
Horizontal scan15–135 kHz15.38–91.15 kHz
Vertical scan23.98–60 Hz24–85 Hz
Smart platform
Wi-Fi—None
EthernetYesYes
Audio
Speaker power—10 W
Speakers—2
Audio outputs3.5 mm3.5 mm
HDMI audio returnNoneDerivedNoneDerived
Physical & installation
Dimensions (W × D × H)545 × 436 × 164 mm486 × 433 × 186 mm
Weight16,300 g15,000 g
Colours—Black
OrientationsTable, Ceiling, RearTable, Ceiling, Rear, + Portrait, + 360°
Ceiling mountM6, screws ≤ 14 mm—
Ingress protection—IP5X (light engine)
Environment & power
Operating temperature0–45°C5–40°C
Operating humidity20–80%RH10–85%RH
Altitude3,048 m—
Power drawNormal 448 W · Eco 379 WMax 530 W · Eco 280 W
Standby0.5 W0.5 W
Networked standby2 W—
Mains input100–240 V · 50/60 Hz100–240 V · 50/60 Hz
Noise
Fan noiseNormal 33 dB(A) · Eco 29 dB(A)Max 38 dB(A) · Eco 34 dB(A)
Safety & compliance
Laser classClass 1Class 1
Risk groupRG2RG2
FDA laser noticeNotice 57Notice 57
MarksFCCFCC
Support & ownership
Warranty3 yr3 yr (light source 5 yr or 12,000 h)
User manual—https://region-resource.optoma.com/products/import/Documents/ad1f9f02-d889-4904-98d5-d45260c1187b.pdf
In the box
In the boxPower cord, Remote, Remote batteries, + User manual, + Warranty cardPower cord, Remote, Remote batteries, + Quick start guide
