Samsung The Premiere LSP9T
MSRP$6,499
| Brand | Samsung · The Premiere |
| Type | UST laser TV |
| Resolution | 4K UHD (2.7K pixel shift) |
| HDR formats | HDR10, HLG, HDR10+ |
| Imaging technology | DLP |
| Light source type | RGB triple laser |
| ANSI lumens | 2,800 lm |
| Native on/off contrast | 1,500:1 |
| Throw ratio | 0.19:1 |

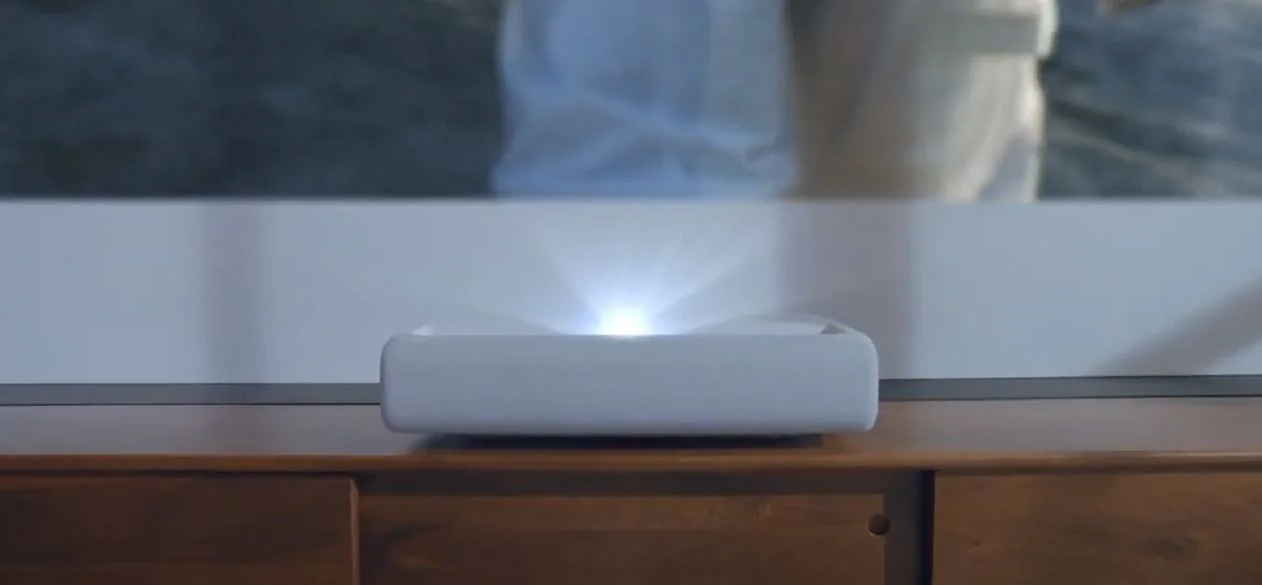

A 130-inch-class ultra-short-throw laser projector with a single-chip DLP imager (3840x2160 via pixel shifting), a three-laser RGB light engine, Tizen smart platform and 40 W 4.2-channel speakers. Launched around late 2020 as Samsung's first Premiere projector in this class, it carries HDR10+ certification and Filmmaker Mode but no Dolby Vision and no 4K/120Hz or VRR on its HDMI inputs.
Data sheet
| Imaging technology | DLP | |
| Technology brand | DLP | |
| Number of imaging devices | 1 | |
| Chip / panel diagonal | 0.66 in | |
| Native resolution | 2716 × 1528 | |
| Addressable resolution | 3840 × 2160 | |
| Native on/off contrast | 1,500:1 | |
| Dynamic contrast | 2,000,000:1 | |
| Dynamic light control | Laser dimming | |
| DCI-P3 gamut | 147% | |
| BT.2020 gamut | 106% | |
| Filmmaker Mode | Yes | |
| HDR formats | HDR10, HLG, HDR10+ | |
| Frame interpolation (MEMC) | Yes | |
| Max refresh rate | 3840×2160: 60 Hz | |
| Auto low-latency mode | Yes | |
| 3D support | No |
Optics
| Throw ratio | 0.19:1 | |
| Projection distance table | 100″: 0.11 m · 105″: 0.13 m · 110″: 0.15 m · 115″: 0.18 m · 120″: 0.2 m · 125″: 0.22 m · 130″: 0.24 m | |
| Zoom type | None | |
| Focus | Motorized | |
| Image size range | 100–130 in |
Light source
| Light source type | RGB triple laser | |
| Light source life | Normal: 20,000 h | |
| ANSI lumens | 2,800 lm ANSI | ANSI |
| Claimed brightness (non-standard) | 2,800 | |
| Claimed brightness unit | Peak lumens |
Audio
| Speaker power | 40 W | |
| Audio channels | Other | |
| Audio outputs | Optical, HDMI eARC, Bluetooth | |
| HDMI eARC | Yes | |
| Bluetooth audio out | Yes |
Inputs, control & connectivity
| Max input signal | 4096 × 2160 | |
| HDMI port count | 3 | |
| HDMI ports (feature-level) | HDMI 1: HDMI, 18 Gbps, HDCP 2.2, eARC; HDMI 2: HDMI, 18 Gbps, HDCP 2.2; HDMI 3: HDMI | |
| USB media playback | Yes | |
| Wi-Fi | Wi-Fi 5 | |
| Bluetooth version | 4.2 | |
| Ethernet | Yes | |
| Screen fit / alignment | Yes | |
| Eye-protection sensor | Yes |
Environment & power
| Operating temperature | 10–40°C | |
| Operating humidity | 10–80%RH | |
| Altitude / high-altitude mode | 3,048 m | |
| High-altitude mode | Yes | |
| Operating orientations | Table, Ceiling, Rear | |
| Rated voltage | 100–240 V | |
| Rated frequency | 50–60 Hz | |
| Power consumption (max) | 410 W | |
| Standby power | 0.5 W | |
| Fan noise (sound pressure) | Bright mode typical: 32 dB(A) |
Physical & installation
| Width | 550 mm | |
| Depth | 367 mm | |
| Height | 141 mm | |
| Weight | 11.5 kg | |
| Colours / finishes | White | |
| Mount hole pattern | Thread: M6 · Hole spacing mm: 235–135 · Depth mm: 7-9 · Quantity: 4 | |
| Sealed optical engine | Yes |
Support & ownership
| User manual | https://downloadcenter.samsung.com/content/EM/202307/20230707114625751/BP81-00249V-01_UM_ULSP7TBJ_ULSP9TAJ_XE_L11_230622.0.pdf | |
| Photobiological risk group | RG2 | |
| Laser product class | Class 1 (IEC 60825-1:2014) |
In the box
| Box contents | Remote, Batteries, User manual, Warranty card, Power cord | |
| Remote type | Bluetooth |
Tools
- Throw calculator — How far from the screen the The Premiere LSP9T needs to sit for a given image size, set to its 0.189:1 lens.
- Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
- Download spec as JSON — The same data from the open data API, with variants and identifiers.
Variants & identifiers
Use these to confirm a listing is this exact model. Any of them works at /p/{code}.
| Variant | Region | Type | Code |
|---|---|---|---|
| US (SP-LSP9TFAXZA) | 🇺🇸 US | ASIN | B08DL977MJ |
| MPN | SP-LSP9TFAXZA | ||
| EU (SP-LSP9TFAXXC) | 🇪🇺 EU | MPN | SP-LSP9TFAXXC |
| UK (SP-LSP9TFAXXU) | 🇬🇧 GB | MPN | SP-LSP9TFAXXU |
| AU (SP-LSP9TFAXXY) | 🇦🇺 AU | MPN | SP-LSP9TFAXXY |
| SG (SP-LSP9TKAXXS) | 🇸🇬 SG | MPN | SP-LSP9TKAXXS |
| HK (SP-LSP9TJAXZK) | 🇭🇰 HK | MPN | SP-LSP9TJAXZK |
| All variants | All regions | Model number | SP-LSP9TFA |
Reviews
| Date | Title | Publication |
|---|---|---|
| February 14, 2022 | Samsung Premiere LSP9T Laser TV review | Projector Reviews |
| — | Samsung Premiere LSP9T review | TechRadar |
| — | Samsung The Premiere LSP9T review | What Hi-Fi? |
| April 14, 2021 | Samsung The Premiere LSP9T ultra short throw 4K projector review | StereoNET |
