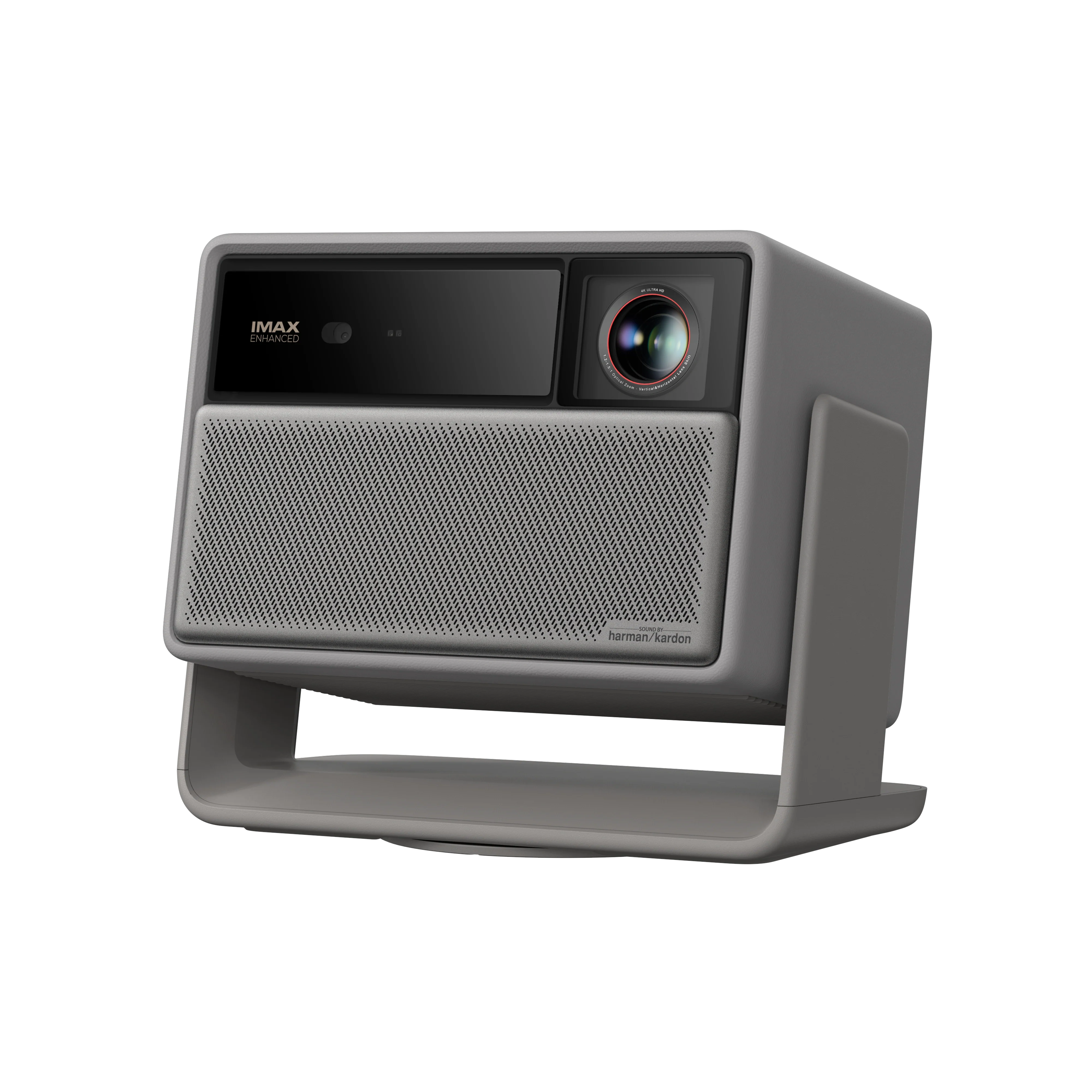

XGIMI HORIZON 20 Pro
MSRP$2,499
| Brand | XGIMI · HORIZON 20 |
| Type | Home cinema |
| Released | October 2025 |
| Resolution | 4K UHD |
| HDR formats | HDR10+, Dolby Vision |
| Imaging technology | DLP |
| Light source type | RGB triple laser |
| ISO light output | 4,100 lm |
| Throw ratio | 1.2–1.5:1 |
| Input lag (rated) | 1920×1080 @ 240 Hz: 1 ms · 1920×1080 @ 120 Hz: 2.2 ms · 3840×2160 @ 60 Hz: 3 ms |
A 4K DLP home projector with an RGB triple laser light source rated at 4,100 ISO lumens, Dolby Vision, HDR10+ and IMAX Enhanced, a 1.2-1.5:1 optical zoom lens with lens shift (V±120%, H±45%) and Google TV. XGIMI quotes 1 ms input lag at 1080p/240 Hz, two HDMI ports (one eARC) and 2 x 12 W Harman Kardon speakers. Tom's Guide measured 2,792 lumens by default and about 1,257:1 contrast, well under the claims.
Data sheet
| Imaging technology | DLP | |
| Technology brand | DLP | |
| Chip / panel diagonal | 0.47 in | |
| Native aspect ratio | 16:9 | |
| Addressable resolution | 3840 × 2160 | |
| Dynamic contrast | 20,000:1 DBLE on | DBLE on |
| BT.2020 gamut | 110% | |
| Gamut metric | Area | |
| Filmmaker Mode | Yes | |
| HDR formats | HDR10+, Dolby Vision | |
| Tone mapping type | Dynamic | |
| Tone-mapping brand name | Dynamic Tone Mapping | |
| Frame interpolation (MEMC) | Yes | |
| Max refresh rate | 1920×1080: 240 Hz · 3840×2160: 60 Hz | |
| Input lag (rated) | 1920×1080 @ 240 Hz: 1 ms · 1920×1080 @ 120 Hz: 2.2 ms · 3840×2160 @ 60 Hz: 3 ms Game Mode with auto keystone off | Game Mode with auto keystone off |
| Auto low-latency mode | Yes | |
| 3D support | Yes |
Optics
| Throw ratio | 1.2–1.5:1 | |
| Zoom type | Optical | |
| Zoom ratio | 1.25× | |
| Focus | Auto | |
| Vertical lens shift | ±120% | |
| Horizontal lens shift | ±45% | |
| Motorized lens shift | Yes | |
| Image size range | 40–300 in |
Light source
| Light source type | RGB triple laser | |
| Light source detail | XGIMI X-Master RGB triple laser engine | |
| ISO light output | 4,100 lm ISO 21118 | ISO 21118 |
Audio
| Speaker power | 24 W | |
| Speaker count | 2 | |
| Audio partner | Harman Kardon | |
| DTS | Yes | |
| Audio outputs | 3.5 mm, Optical, HDMI eARC | |
| HDMI eARC | Yes |
Inputs, control & connectivity
| Max input signal | 3840 × 2160 | |
| HDMI port count | 2 | |
| HDMI ports (feature-level) | HDMI 1: HDMI, eARC; HDMI 2: HDMI | |
| Audio input terminals | 3.5 mm, Optical | |
| Control ecosystem drivers | Google Home | |
| Wi-Fi | Wi-Fi 6 | |
| Bluetooth version | 5.2 | |
| Auto keystone | Yes | |
| Screen fit / alignment | Yes | |
| Obstacle avoidance | Yes | |
| Eye-protection sensor | Yes | |
| Integrated stand / gimbal | Type: gimbal |
Environment & power
| Operating temperature | 0–40°C | |
| Operating orientations | Table, Ceiling, Rear | |
| Rated voltage | 100–240 V | |
| Rated frequency | 50–60 Hz | |
| Power consumption (max) | 230 W | |
| Power supply | External brick | |
| Fan noise (sound pressure) | Rated: 28 dB(A) 25°C ambient, 1 m from the machine | 25°C ambient, 1 m from the machine |
| Noise measurement distance | 1 m |
Physical & installation
| Width | 298 mm | |
| Depth | 190 mm | |
| Height | 249 mm | |
| Weight | 4.9 kg | |
| Colours / finishes | Elephant grey | |
| Tripod socket | Yes |
Support & ownership
| Warranty | 🇺🇸 US 2 yr | |
| User manual | https://helpcenter.xgimi.com/hc/en-gb/article_attachments/50404758879257 | |
| Photobiological risk group | RG2 | |
| Safety & market certifications | IMAX Enhanced |
In the box
| Box contents | Power plug, User manual, Warranty card, Remote control, Batteries | |
| Remote type | Bluetooth |
Tools
- Throw calculator — How far from the screen the HORIZON 20 Pro needs to sit for a given image size, set to its 1.2–1.5:1 lens.
- Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
- Download spec as JSON — The same data from the open data API, with variants and identifiers.
Variants & identifiers
Use these to confirm a listing is this exact model. Any of them works at /p/{code}.
| Variant | Region | Type | Code |
|---|---|---|---|
| US | All regions | ASIN | B0FN7TPNSG |
| EAN | 6935670509192 | ||
| Maker SKU | GMN_004316 | ||
| MPN | XR14A | ||
| GB | All regions | EAN | 6935670509284 |
