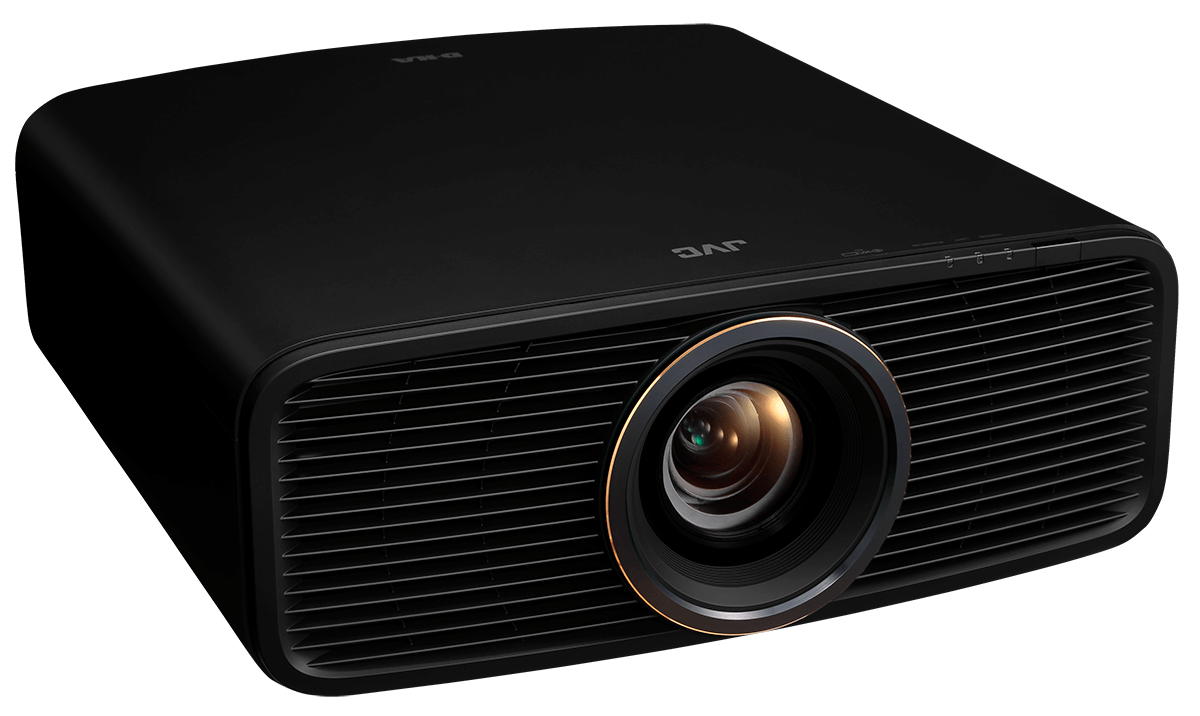

Dangbei DBOX02 Pro vs JVC DLA-RS1200
 Dangbei DBOX02 Pro$898.98 |  JVC DLA-RS1200MSRP $6,999.95 | |
|---|---|---|
| Key differences | ||
| White light output | 2,000 lm ISO | 2,000 lm ANSI |
| Native resolution | — | DCI 4K (4096 × 2160) |
| Native contrast (on/off) | — | 40,000:1 |
| Throw ratio | 1.27:1 | 1.34–2.14:1 |
| Fan noise | Up to 24 dB(A) | 23 dB(A) |
| Price | $898.98 | MSRP $6,999.95 |
| Room fit | ||
| Distance to screen | 2.8 m | 3.0–4.8 m |
| Brightness | ||
| Rated brightness | 2,000 lmDerived | 2,000 lmDerived |
| White light output | 2,000 lm ISO | 2,000 lm ANSI |
| Claimed brightness (non-standard) | — | 2,000 lm |
| Display system | ||
| Imaging technology | DLP | LCoS |
| Chip / panel diagonal | 0.47 in | 0.69 in |
| Panel alignment | — | Zone-by-zone |
| On-screen resolution | 4K UHD (3840 × 2160)Derived | DCI 4K (4096 × 2160)Derived |
| Native resolution | — | DCI 4K (4096 × 2160) |
| Native aspect | 16:9Derived | 17:9Derived |
| Addressable resolution | 4K UHD (3840 × 2160) | — |
| Contrast | ||
| Native contrast (on/off) | — | 40,000:1 |
| Dynamic contrast method | — | Light-source dimming |
| Manual iris | — | Yes |
| Colour | ||
| Colour gamut | Rec. 709 108% area | Rec. 709 100% |
| Colour bit depth (per channel) | 8 bit | 12 bit |
| Gamma / EOTF presets | — | 2.2, 2.4, 2.6, Custom |
| Colour temperature presets | — | D93, D65, D55, Custom |
| HDR | ||
| HDR formats | HDR10, HDR10+, HLG | HDR10, HDR10+, HLG |
| Tone mapping | — | Dynamic |
| Tone mapping (maker name) | — | Frame Adapt HDR (Gen2) with Deep Black Tone Control |
| HDR metadata used | — | Uses MaxCLL |
| Calibration | ||
| Colour management (CMS) | — | 6-axis |
| Picture mode memories | — | 4 |
| Auto-calibration | — | Sensor supported |
| Picture certifications | — | ISF, Filmmaker Mode |
| 3D | ||
| 3D | Yes | — |
| 3D formats | Side-by-side, Top-bottom | — |
| Light source | ||
| Light source | Laser (phosphor) | Laser (phosphor) |
| Emitter | Blue + red laser | Blue laser + phosphor |
| Light engine | LaserVibe | BLU-Escent |
| Laser wavelengths | R 640 · G 530 · B 460 nm | — |
| Light-source life | — | 20,000 h |
| Light output control | — | Steps |
| Cool-down time | — | About 10 s |
| Optics | ||
| Throw ratio | 1.27:1 | 1.34–2.14:1 |
| Image size | 40–300 in | 60–200 in |
| Zoom | Digital | Optical |
| Zoom ratio | — | 1.6×Derived |
| Focus | Motorised | Motorised |
| Autofocus | Yes | — |
| Vertical lens shift | None | ±70% |
| Horizontal lens shift | None | ±28% |
| Motorised lens shift | — | Yes |
| Lens memory slots | — | 5 |
| Auto keystone | Yes | — |
| Corner correction | 4-corner | — |
| Auto setup | Fit to screen, Obstacle avoidance | — |
| Lens elements | — | 15 |
| Motion & gaming | ||
| Frame interpolation (MEMC) | Yes | — |
| Black frame insertion | — | Yes |
| Max input refresh | 1080p: 240 Hz | 4K UHD: 60 Hz |
| Max refresh at 1080p | 240 HzDerived | — |
| Max refresh at 4K | — | 60 HzDerived |
| Inputs & control | ||
| HDMI inputs | HDMI 2.1 (eARC) · HDMI 2.1 | 2 × HDMI (HDCP 2.3, 32 Gbps) |
| HDMI inputs (count) | 2Derived | 2Derived |
| Newest HDMI version | HDMI 2.1Derived | — |
| Max input resolution | 4K UHD | DCI 4K |
| USB media playback | Yes | — |
| Control-system drivers | — | Control4 |
| Smart platform | ||
| Wi-Fi | Wi-Fi 6 | — |
| Bluetooth | 5.2 | — |
| Ethernet | Yes | Yes |
| Smart platform | Google TV | — |
| RAM | 2 GB | — |
| Storage | 32 GB | — |
| Netflix | Built in | — |
| Casting | Chromecast built-in | — |
| Audio | ||
| Speaker power | 24 W | — |
| Speakers | 2 | 0 |
| Audio formats | DTS | — |
| Audio outputs | 3.5 mm, HDMI eARC, Bluetooth | — |
| HDMI audio return | eARCDerived | — |
| Bluetooth speaker mode | Yes | — |
| Physical & installation | ||
| Dimensions (W × D × H) | 263 × 216 × 247 mm | 450 × 479 × 181 mm |
| Weight | 4,800 g | 14,600 g |
| Colours | Grey | — |
| Orientations | — | Table, Ceiling, Rear |
| Built-in stand | Gimbal, 120° tilt, 360° pan | — |
| Ceiling mount | — | 4 × M5, 20–25 mm screws, 2 N·m |
| Exhaust | — | Rear |
| Environment & power | ||
| Operating temperature | 0–40°C | 5–35°C |
| Operating humidity | — | 20–80%RH |
| Altitude | — | 2,000 m |
| Power draw | Max 110 W | 280 W |
| Standby | Up to 0.5 W | 0.3 W |
| Networked standby | Up to 2 W | 1.5 W |
| Power supply | External adapter | — |
| Mains input | 100–240 V | 100–240 V · 50/60 Hz |
| Noise | ||
| Fan noise | Up to 24 dB(A) | 23 dB(A) |
| Safety & compliance | ||
| Laser class | Class 1 | Class 1 |
| Risk group | RG2 | RG2 |
| Eye-protection sensor | Yes | — |
| Marks | + CE, + UKCA, FCC | FCC |
| Support & ownership | ||
| Warranty | 1 yr | 3 yr |
| User manual | https://cdn.shopify.com/s/files/1/0582/1127/0815/files/DBOX02Pro_20250630.pdf | https://manuals.jvckenwood.com/download/files/B5A-4685-11.pdf |
| In the box | ||
| In the box | Power cord, + Power adapter, Remote, Remote batteries, + User manual | Power cord, Remote, Remote batteries, + Quick start guide, + Warranty card, + Lens cap |
| Remote | Bluetooth | IR |
