BenQ HT2060

Brand	BenQ · Home Cinema
Type	Home cinema
Status	Discontinued
Released	April 2023
Resolution	1080p
HDR formats	HDR10, HLG
Imaging technology	DLP
Light source	LED
Brightness	2,300 lm ANSI
Throw ratio	1.15–1.5:1
Input lag	1080p: 60 Hz 16.7 ms · 120 Hz 8.3 ms · 4K UHD: 60 Hz 33.4 ms

A native 1080p single-chip DLP home cinema projector with a 4LED light source rated 2,300 ANSI lumens, a 1.3x manual zoom lens and vertical lens shift. It has two HDMI 2.0b inputs, accepts 4K signals downscaled to 1080p, supports 1080p at 120 Hz, and has no smart platform.

Data sheet


White light output	2,300 lm ANSI
Imaging technology	DLP
Chip / panel diagonal	0.65 in
Native resolution	1080p (1920 × 1080)
Native aspect	16:9Derived
Pixel shift	None
Dynamic contrast	500,000:1
Colour gamut	Rec. 709 98% coverage
Colour bit depth (per channel)	10 bit
Gamma / EOTF presets	2.2, 2.4, 2.6
Colour temperature presets	Native
HDR formats	HDR10, HLG
Picture mode memories	1
Picture certifications	ISF, Filmmaker Mode
3D	Yes
3D formats	Frame packing, Side-by-side, Top-bottom, Frame sequential

Light source

Light source	LED
Emitter	4-channel LED
Light-source life	20,000 h normal · 30,000 h eco
Cool-down time	2 s

Optics

Throw ratio	1.15–1.5:1100″ · 2.55–3.32 m
Projection offset	105%
Zoom	Optical
Zoom ratio	1.3×Derived
Focal length	16.88–21.88 mm
Aperture (f-number)	2.59–2.87
Focus	Manual
Vertical lens shift	0–10%
Motorised lens shift	No
Vertical keystone	40°
Horizontal keystone	40°
Auto keystone	Yes

Motion & gaming

Max input refresh	1080p: 120 Hz
Input lag	1080p: 60 Hz 16.7 ms · 120 Hz 8.3 ms · 4K UHD: 60 Hz 33.4 ms Fast Mode	Fast Mode

Inputs & control

HDMI inputs	2 × HDMI 2.0 (HDCP 2.2)
Max input resolution	4K UHD
Audio inputs	3.5 mm
Control ports	RS-232

Smart platform

None

Audio

Speaker power	5 W
Speakers	2
Tuned by	treVolo
Audio outputs	3.5 mm, Optical
HDMI audio return	NoneDerived

Physical & installation

Dimensions (W × D × H)	366 × 244 × 118 mm
Weight	3,600 g
Ceiling mount	M4

Environment & power

Operating temperature	0–40°C
Operating humidity	10–90%RH
Altitude	3,000 m · high-altitude mode
Power draw	220 W
Standby	Up to 0.5 W
Power supply	Built in
Mains input	100–240 V · 50/60 Hz
Fan noise	Normal 33 dB(A) · Eco 28 dB(A)

Safety & support

Risk group	RG2
Warranty	🇺🇸 US 3 yr

In the box

Power cord, Remote, Remote batteries, Quick start guide, Warranty card

Reviews

Articles

Date	Title	Publication
April 17, 2024	BenQ HT2060 1080p HDR LED Projector Review ProjectorCentral · April 17, 2024	ProjectorCentral
—	BenQ HT2060 LED 1080P Projector Review Projector Reviews	Projector Reviews
—	BenQ HT2060 review Tom's Guide	Tom's Guide

Similar models

Model	Resolution	Tech	Lumens	Price
XGIMI HORIZON Ultra 4K UHD · DLP	4K UHD	DLP	2,300	$1,443.90 +$445	Compare
JVC DLA-NZ700 DCI 4K · LCoS	DCI 4K	LCoS	2,300*	$8,999.99 +$8,001	Compare
JMGO N1S Pro 4K UHD · DLP	4K UHD	DLP	2,250 −50	$799.99 −$199	Compare
JMGO N1 Ultra 4K UHD · DLP	4K UHD	DLP	2,200 −100	$769.99 −$229	Compare

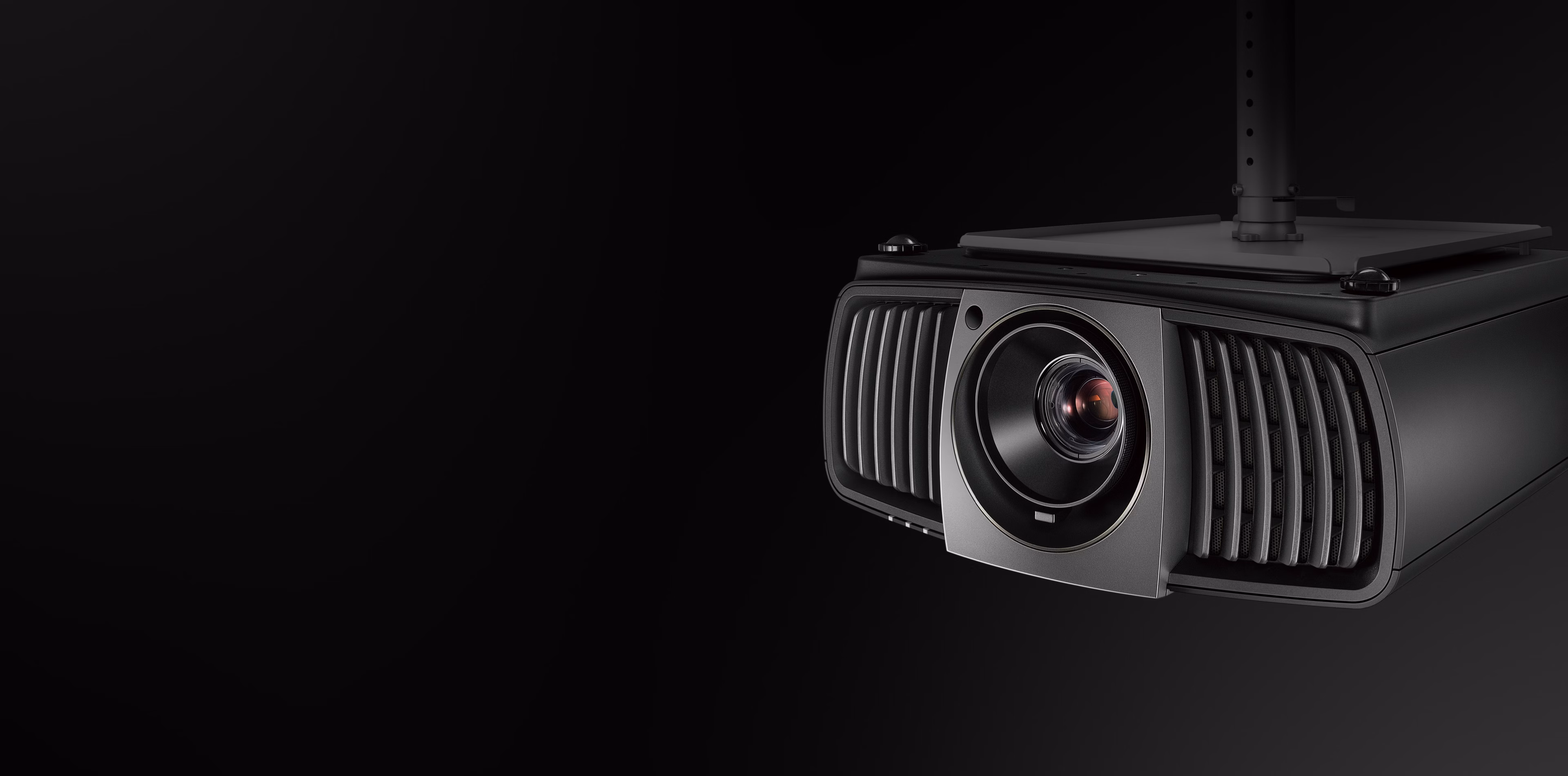

BenQ HT8060 4K UHD · DLP	4K UHD	DLP	2,200 −100	$7,999 +$7,000	Compare

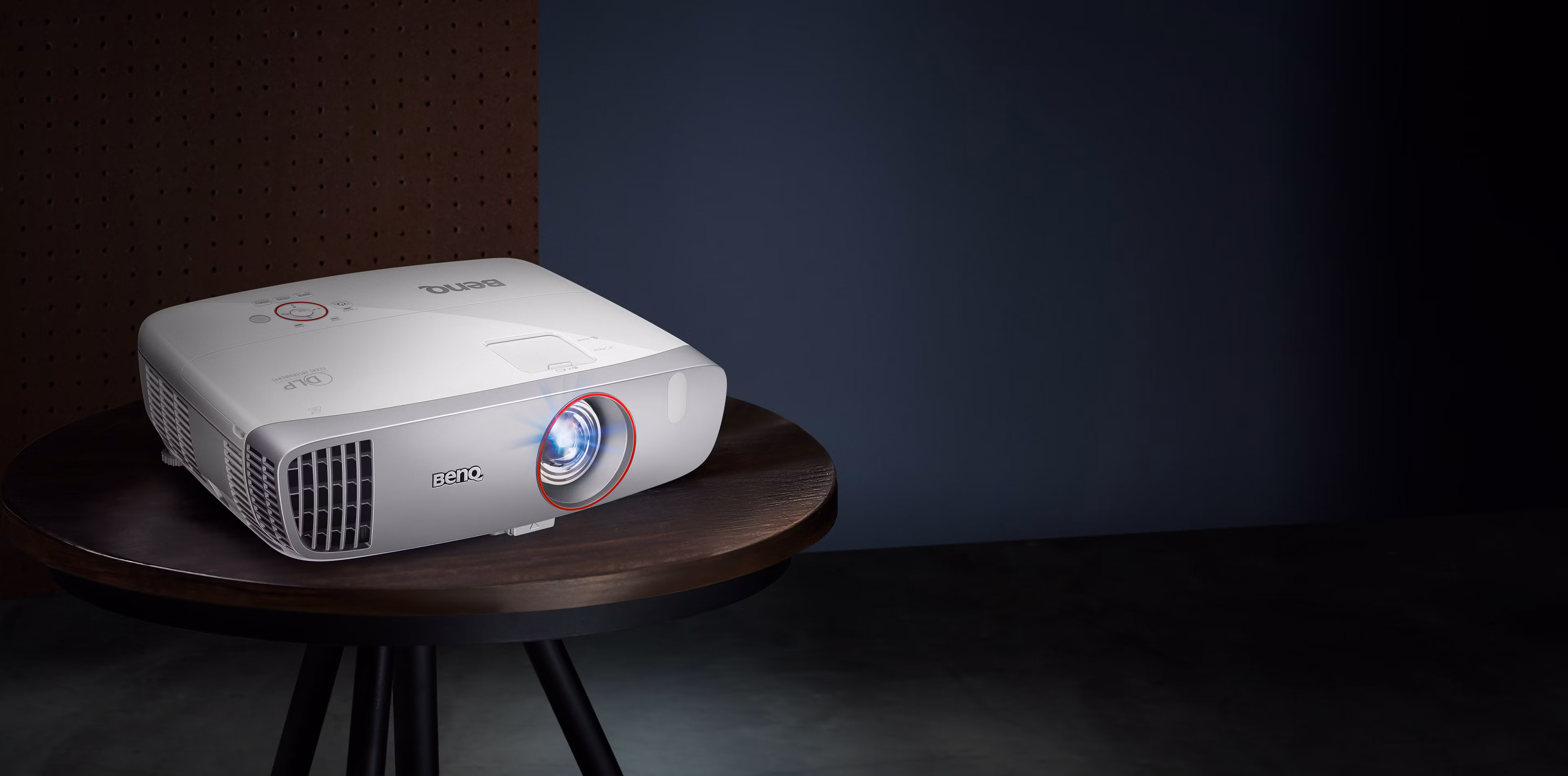

BenQ HT2150ST 1080p · DLP	1080p	DLP	2,200 −100	$999	Compare

Other

Tools

Throw calculator — How far from the screen the HT2060 needs to sit for a given image size, set to its 1.15–1.5:1 lens.
Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
Download spec as JSON — The same data from the open data API, with variants and identifiers.

Variants & identifiers

Use these to confirm a listing is this exact model. Any of them works at /p/{code}.

Variant	Region	Type	Code
Standard	🇺🇸 US	UPC	840046047801
Standard	🇺🇸 US	MPN	HT2060

Sources

Also known as

W1140

Worldwide

Regional model
