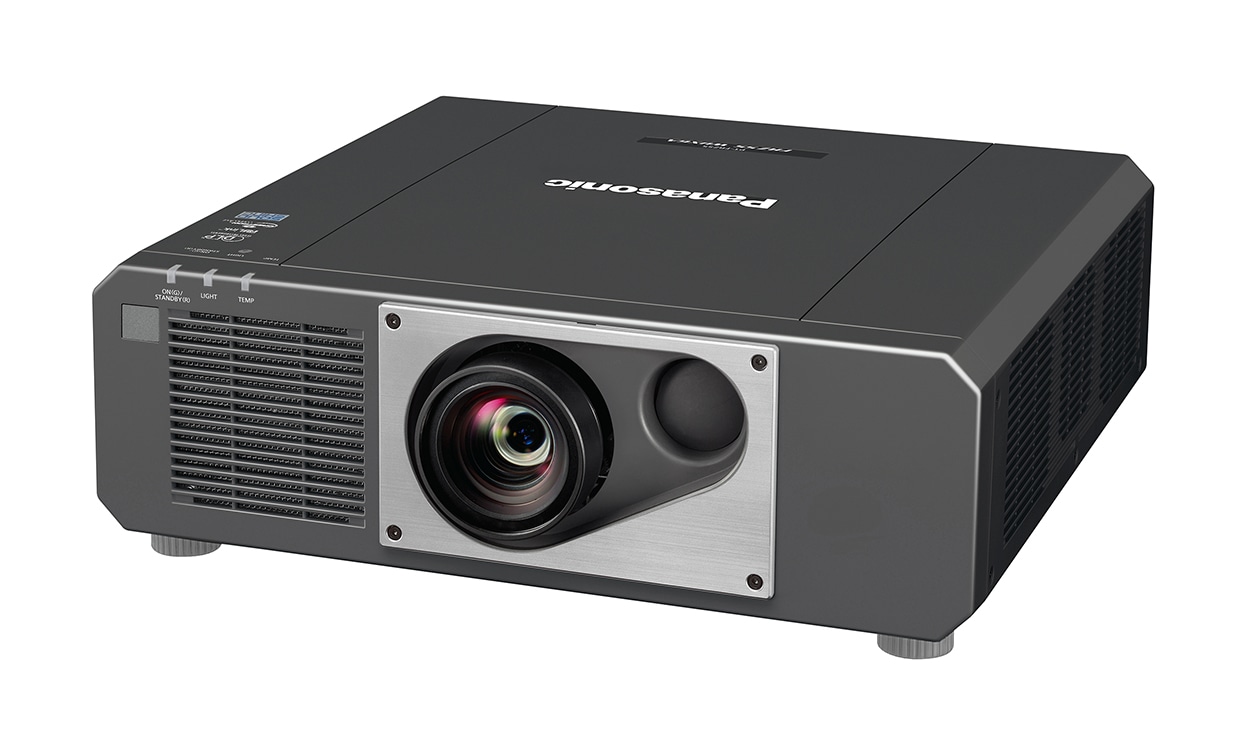

Panasonic PT-FRZ55
| Brand | Panasonic · PT-FRZ60 Series |
| Type | Installation |
| Resolution | WUXGA |
| Imaging technology | DLP |
| Light source | Laser (phosphor) |
| Brightness | 5,000 lm ISO |
| Throw ratio | 0.8:1 |
A fixed-lens single-chip DLP laser projector for installations such as museums, control rooms and classrooms. A 0.67-inch WUXGA (1920x1200) chip, a rated 5,000 lumens and a powered 0.8:1 short-throw lens with small lens shift, two HDMI inputs and DIGITAL LINK.
Data sheet
| White light output | 5,000 lm ISO (Normal power) · 5,000 lm ANSI PICTURE MODE DYNAMIC, DAYLIGHT VIEW OFF, DYNAMIC CONTRAST OFF, LIGHT OUTPUT 100 %, AUTO POWER SAVE OFF; average of all products when shipped; Panasonic states ISO/IEC 21118:2020 ('Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards') and ANSI results are the same | PICTURE MODE DYNAMIC, DAYLIGHT VIEW OFF, DYNAMIC CONTRAST OFF, LIGHT OUTPUT 100 %, AUTO POWER SAVE OFF; average of all products when shipped; Panasonic states ISO/IEC 21118:2020 ('Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards') and ANSI results are the same |
| Brightness uniformity | 85% | |
| Brightness by mode | Normal 5,000 lm · Eco 4,000 lm | |
| Eco brightness | 80%Derived | |
| Imaging technology | DLP | |
| Chip / panel diagonal | 0.67 in | |
| Native resolution | WUXGA (1920 × 1200) | |
| Native aspect | 16:10Derived | |
| Dynamic contrast | 20,000:1 Full On/Full Off with Dynamic Contrast 1; ISO/IEC 21118:2020 per maker footnote | Full On/Full Off with Dynamic Contrast 1; ISO/IEC 21118:2020 per maker footnote |
| Dynamic contrast method | Light-source dimming | |
| Gamma / EOTF presets | 2.2 |
Light source
| Light source | Laser (phosphor) | |
| Light-source life | 20,000 h normal · 24,000 h eco IEC62087:2008 broadcast contents, Dynamic Contrast 2, 30 °C, 700 m, 0.15 mg/m3 particulate matter | IEC62087:2008 broadcast contents, Dynamic Contrast 2, 30 °C, 700 m, 0.15 mg/m3 particulate matter |
| Life defined as | 50% brightness | |
| Cool-down time | 0 s |
Optics
| Throw ratio | 0.8:1100″ · 1.72 m | |
| Image size | 40–300 in | |
| Zoom | None | |
| Focal length | 11.9 mm | |
| Aperture (f-number) | 1.75 | |
| Focus | Motorised | |
| Vertical lens shift | ±4.4% | |
| Horizontal lens shift | ±2.1% | |
| Motorised lens shift | Yes | |
| Vertical keystone | 25° | |
| Horizontal keystone | 20° | |
| Interchangeable lens | No |
Inputs & control
| HDMI inputs | 2 × HDMI (HDCP 2.3) | |
| Other video inputs | VGA, Composite, HDBaseT | |
| Max input resolution | DCI 4K | |
| Audio inputs | 3.5 mm, RCA | |
| Control ports | RS-232 | |
| PJLink | Class 2 | |
| Control-system drivers | Crestron |
Smart platform
| Ethernet | Yes |
Audio
| Speakers | 0 | |
| Audio outputs | 3.5 mm | |
| HDMI audio return | NoneDerived |
Physical & installation
| Dimensions (W × D × H) | 498 × 481 × 168 mm | |
| Weight | 16,400 g | |
| Colours | Black | |
| Orientations | Table, Ceiling, Rear, 360° | |
| Ceiling mount | 5 × M6, 15 mm deep, 4 N·m | |
| Dust filter | None | |
| Sealed optical engine | Yes |
Environment & power
| Operating temperature | 0–45°C | |
| Operating humidity | 10–80%RH | |
| Altitude | 4,200 m | |
| Power draw | Max 465 W · Normal 370 W · Eco 295 W Operating temperature 25 °C, altitude 700 m, Picture Mode Standard, Dynamic Contrast 2 (spec file footnote) | Operating temperature 25 °C, altitude 700 m, Picture Mode Standard, Dynamic Contrast 2 (spec file footnote) |
| Standby | 0.5 W STANDBY MODE ECO | STANDBY MODE ECO |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Normal 32 dB(A) · Eco 32 dB(A) |
Safety & support
| Laser class | Class 1 | |
| Risk group | RG2 | |
| Marks | FCC | |
| User manual | bizpartner.panasonic.net |
In the box
| In the box | Power cord, Remote, Remote batteries |
